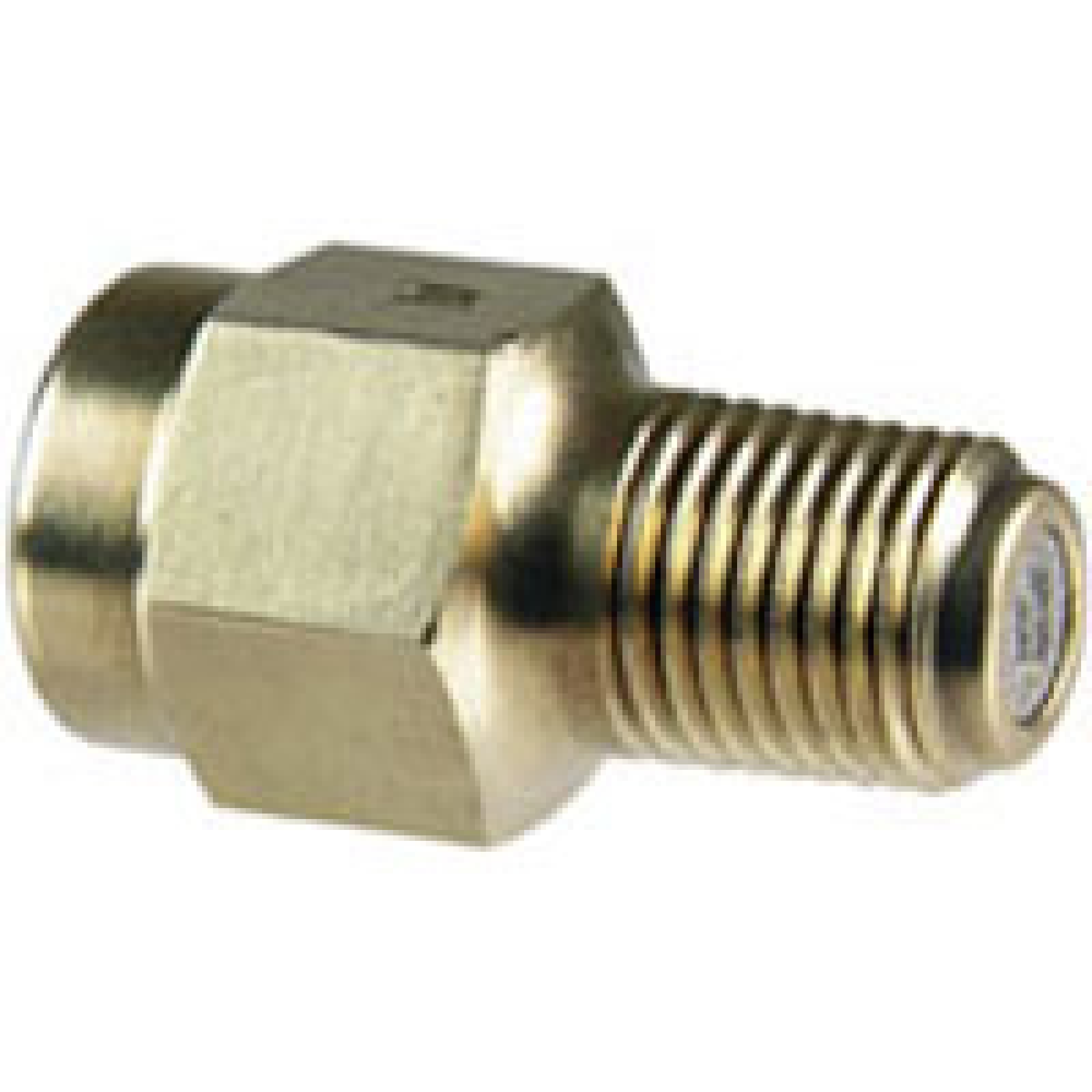

PRESSURE SNUBBER
The Series PS Pressure Snubber is designed to protect pressure instrumentation by dampening surges and pulsations and assuring steady average pressure readings.
Snubbers are available in a variety of pore sizes for use with gases, water, and oils.
SPECIFICATIONS
Maximum Pressure: Brass: 10,000 psi (689 bar), SS: 15,000 psi (1034 bar).
Filter Disc Material: AISI 316 SS.
Approx. Micron Rating: Air and gases: 2-5µ; water and oils (30-225 SSU): 10µ.
Dimensions: 1/4˝ NPT: 3/4˝ (19 mm) hex size, 1.5˝ (38 mm) length.
