FLOTECT ® LIQUID LEVEL SWITCHES
Easy In-wall or External Installation, Up to 2000 psig (138 bar), Compact Size
The Series L6 Flotect ® Liquid Level Switches are rugged and reliable float switches which operates automatically to indicate tank level.

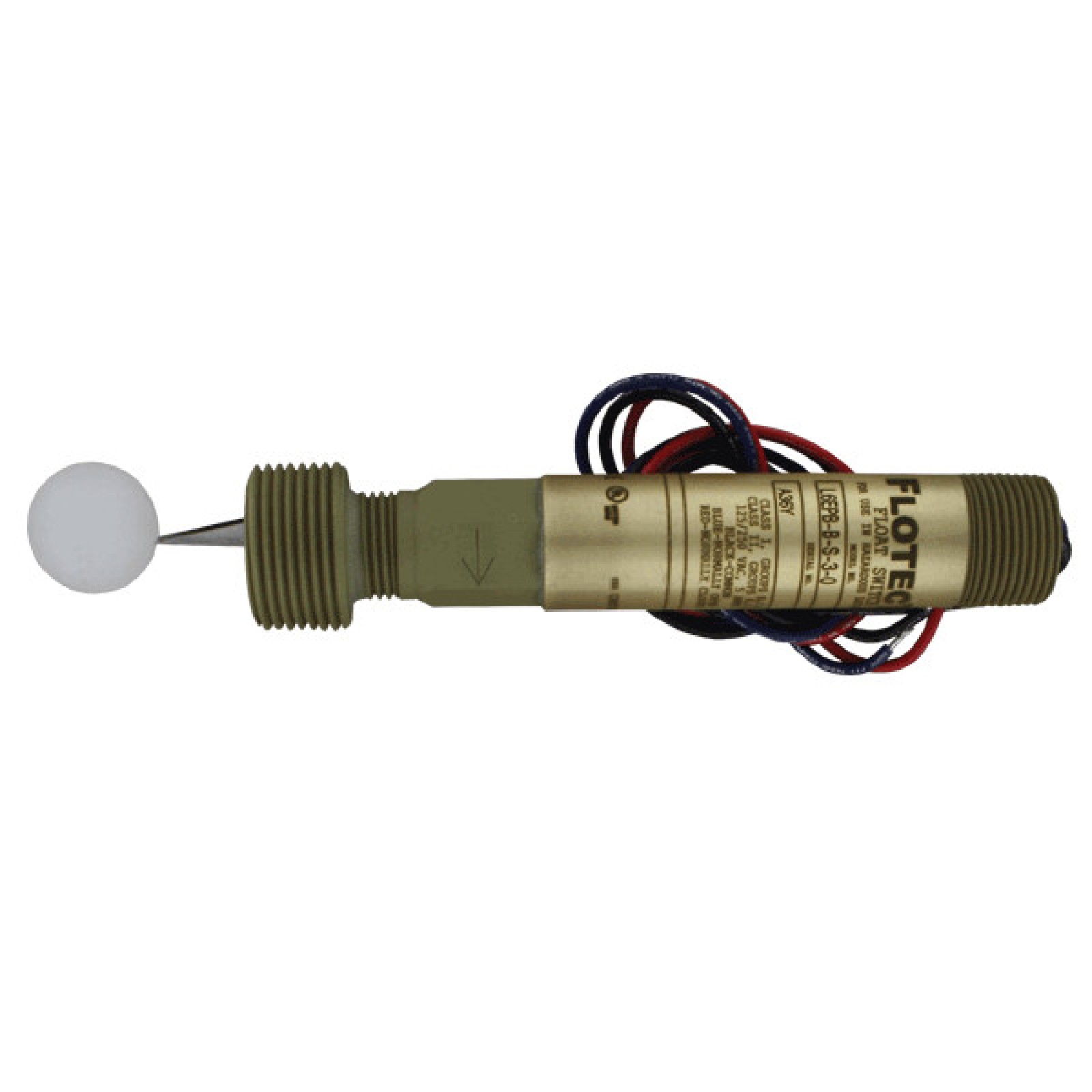

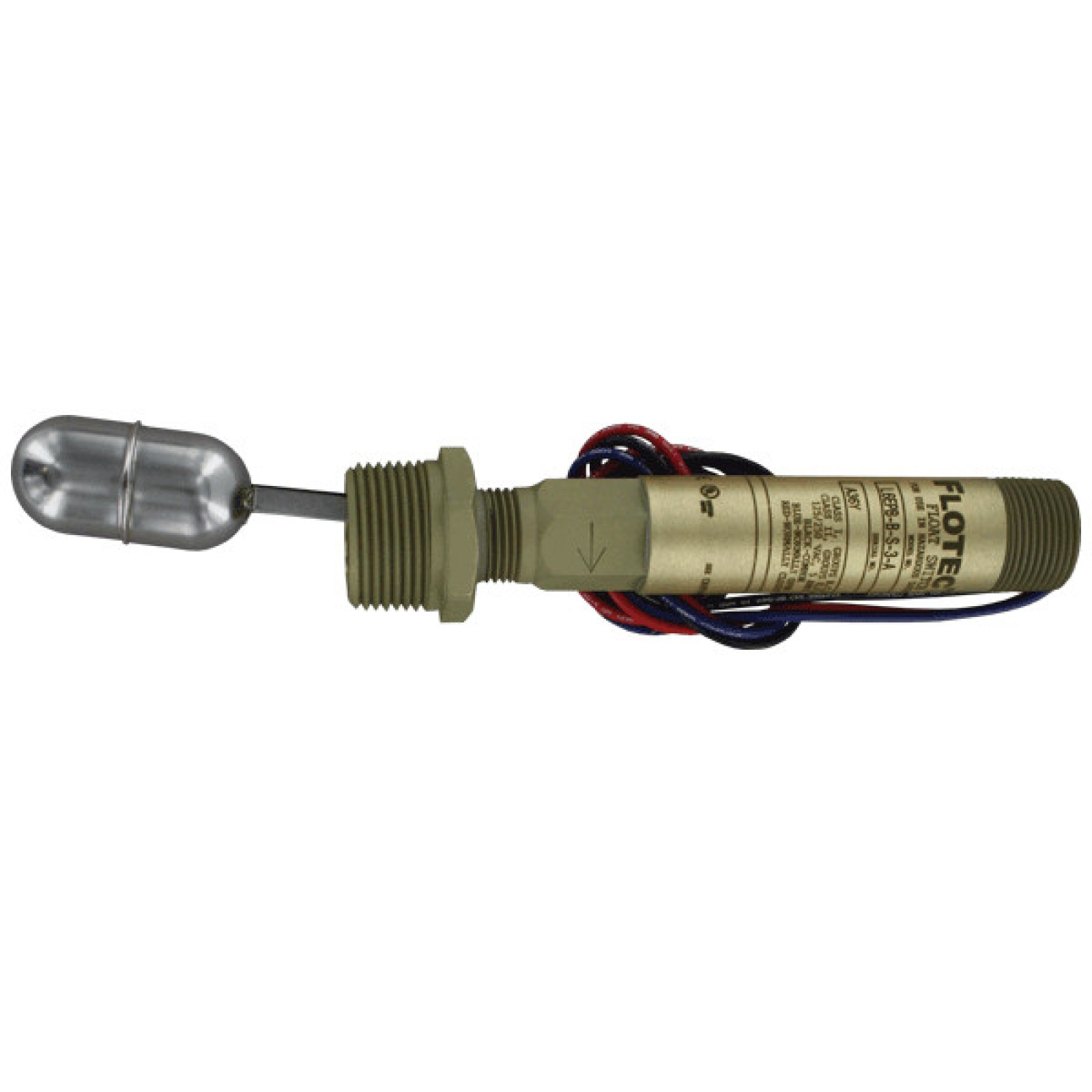

It is offered with a 303 SS or brass body with spherical or cylindrical float options.
FEATURES/BENEFITS
• Compact design is built for years of trouble-free service
• Simple and dependable operation with no mechanical linkage
• Float lever pivoted within the body moves when the process liquid displaces the float and magnet on the opposite end of the float lever controls a second magnet on the switch actuating lever located in the switch housing
• Leak proof lower body machined from bar stock
• Side wall or direct tee mounting options available to act as an external float chamber
• Weatherproof and explosion-proof body for demanding outdoor applications
• Electrical assembly can be easily replaced without removing the unit from the installation so that the process does not have to be shut down
• Sensitive to level changes of less than 1/2˝ (12 mm)
APPLICATIONS
• Direct pump control for maintaining level
• Automatic tank dump operations
• Level control
• Valve control
• Level alarm in sumps, scrubber systems, hydro-pneumatic tanks, boilers, and water/wastewater treatment processes
