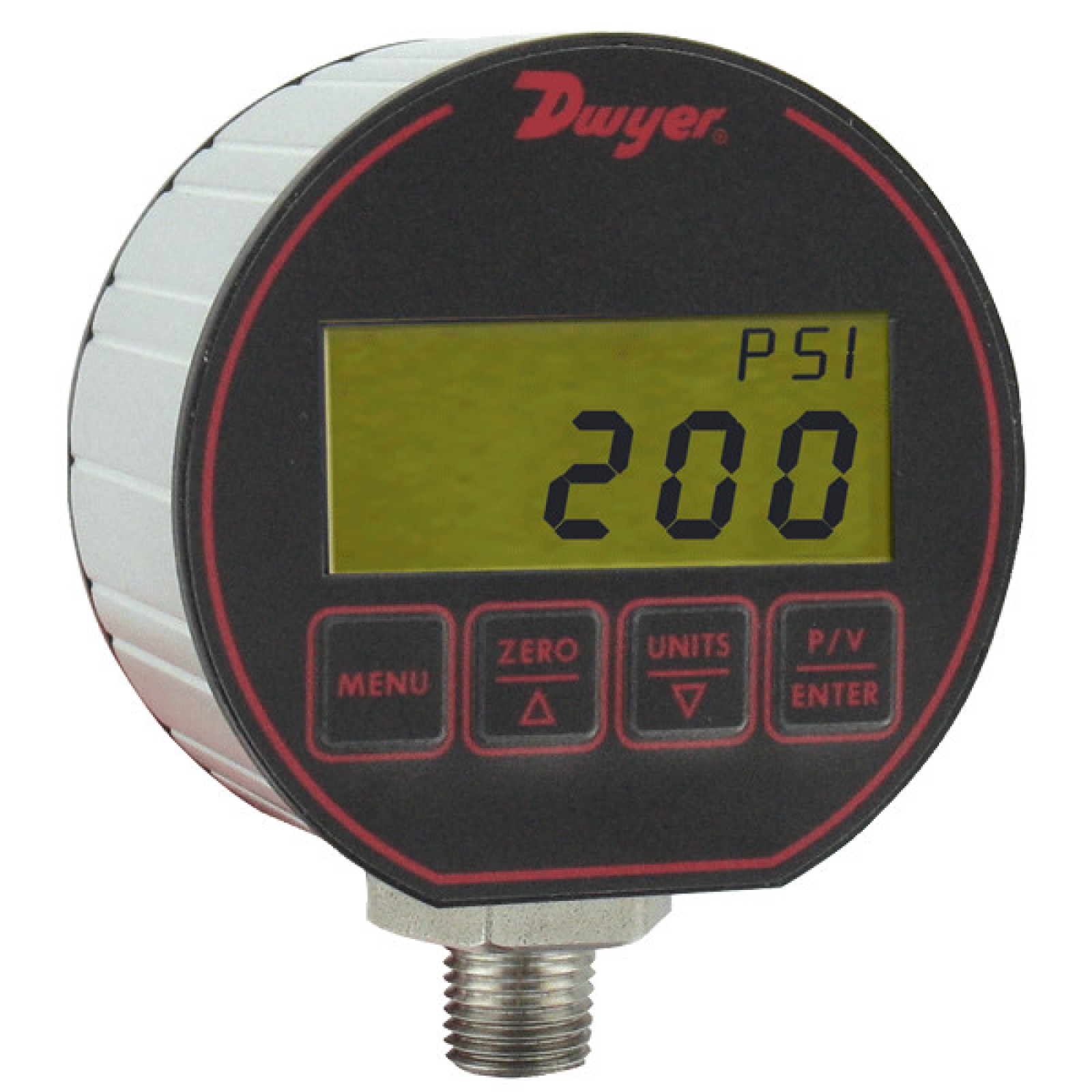

DIGITAL PRESSURE GAGE

3-in-1: Gage, Transmitter and Switch

The Series DPG-200 Digital Pressure Gage has a precise ±0.25% full-scale accuracy.

The 4 digit digital display will reduce the potential for errors in readings by eliminating parallax error commonly produced with analog gages.

The DPG-200 is packaged in a durable extruded aluminum case designed to meet NEMA 4X (IP66).

The unit is powered by 12-24 VDC/VAC and contains two alarm set points along with a 4-20 mA process output. A four-button keypad allows easy access to features.

These features include backlight, peak and valley, auto zero and conversion of the pressure

units. Pressure ranges also in mbar, kg/cm 2 , oz/in 2 , in Hg, mm Hg, ft w.c. and ft sw for

various models.

FEATURES/BENEFITS

• High accuracy provides exceptional measurement minimizing costly out of specification conditions

• Backlit 4-digit display provides clear parallax-free reading reducing potential for errors

• Durable aluminum case to meet NEMA 4X (IP66) requirements supports use in harsh or outdoor environments

• Push-button zero reduce installation and service time

APPLICATIONS

• Process control

• Compressor control
