WET/WET DIFFERENTIAL PRESSURE TRANSMITTERS

0.5% Accuracy, NEMA 4X (IP66) Enclosure

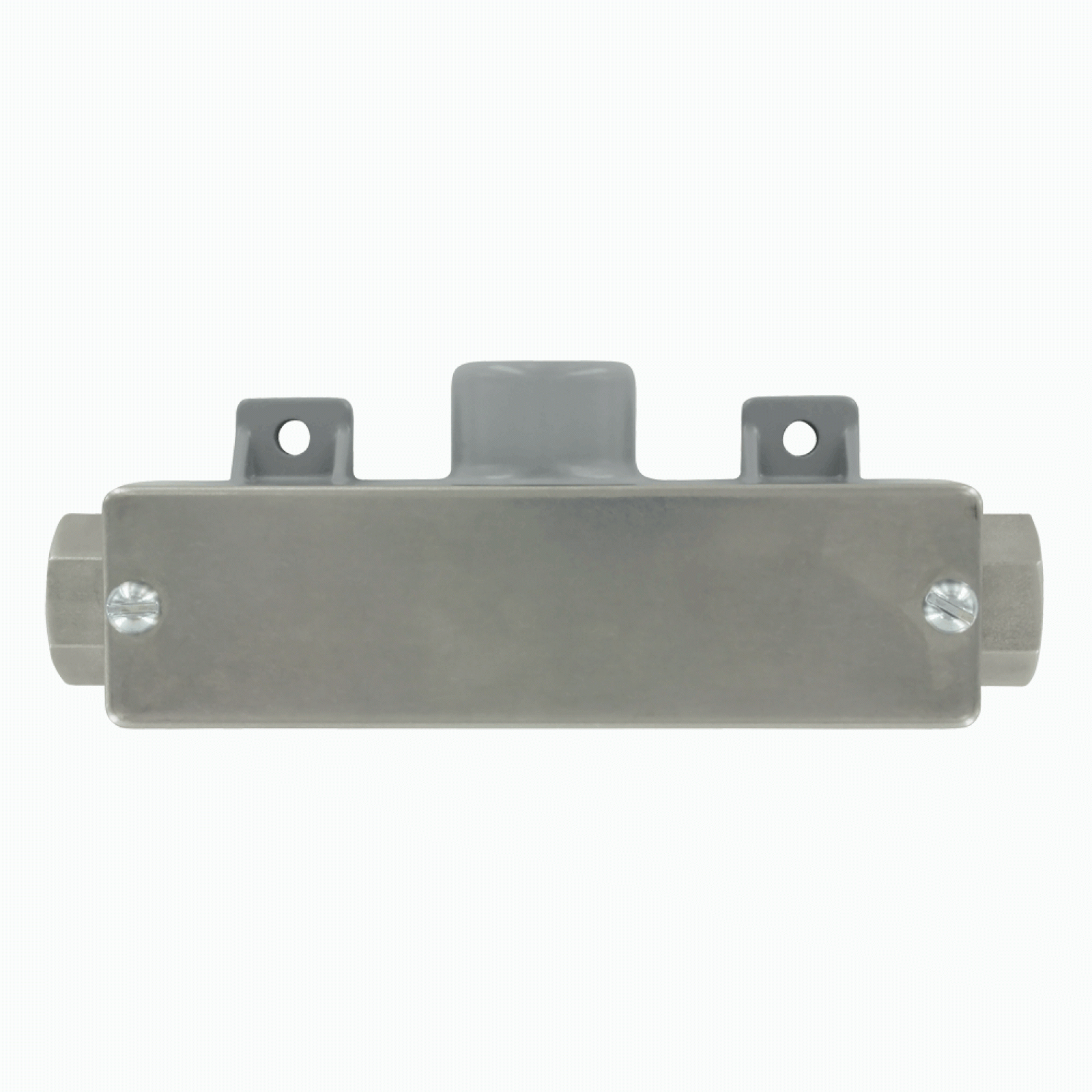

The Series 629C Wet/Wet Differential Pressure Transmitters monitor differential pressure of air and compatible gases and liquids with 0.5% accuracy.

The design employs dual pressure sensors converting pressure changes into a standard 4-20 mA output signal or field selectable voltage.

Small internal volume and minimal moving parts result in exceptional response and reliability.

The terminal block, as well as a zero adjustment button, are easily accessed under the top cover. The Series 629C Differential Pressure Transmitter is designed to meet NEMA 4X (IP66) construction.

FEATURES/BENEFITS

•  Powered by either DC or AC - take advantage of most readily available power source reducing installation costs

•  Optional LCD does not need a separate power supply - lowers installed cost

•  Selectable voltage range - provides flexible choice for changing design or inputs for process/HVAC controllers being used to monitor and control

•  Push-button zero (versus trim pot) - more simple zeroing provides easy install and calibration reducing installation time and possibility of operator error

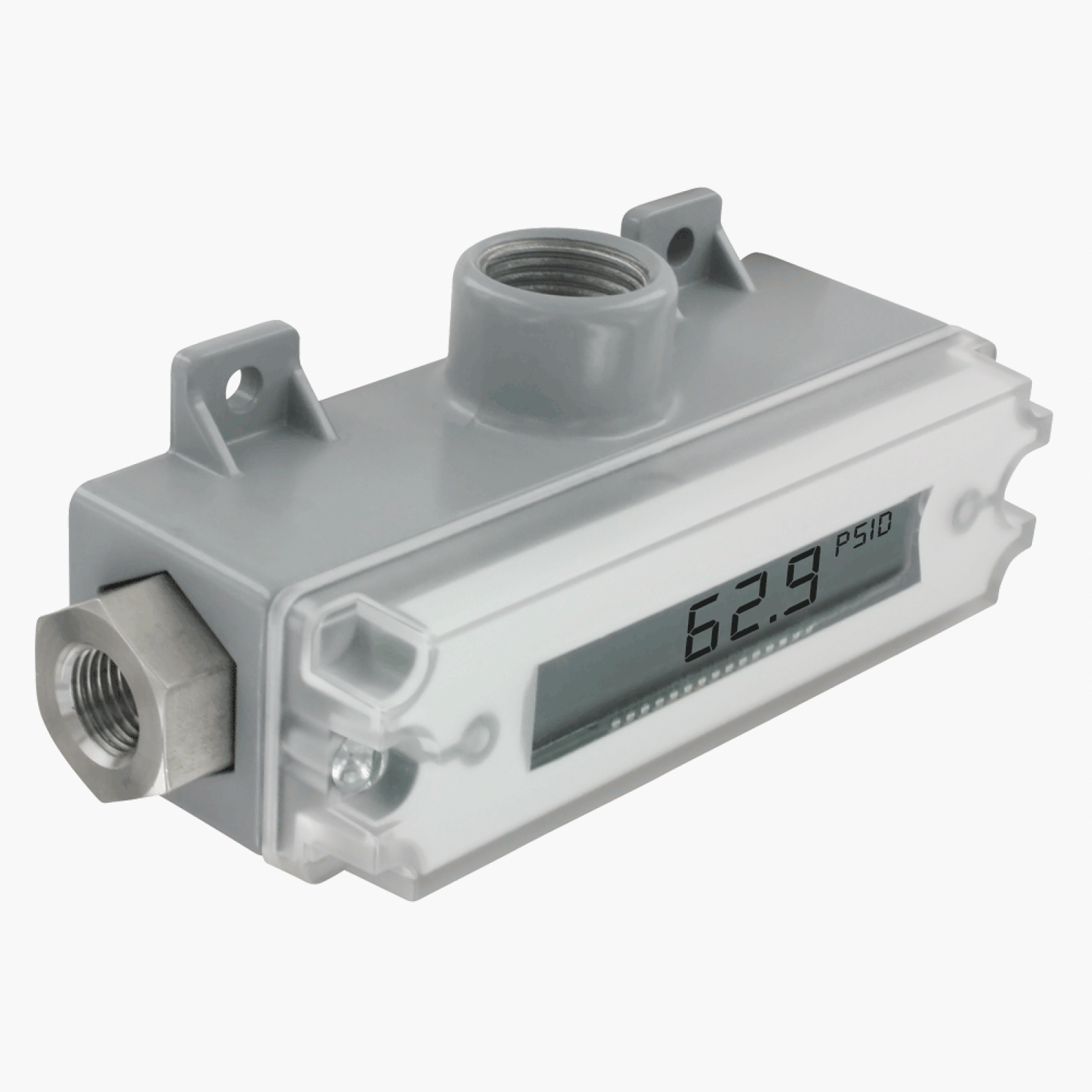

•  Optional LCD indicator provides local status to identify operational condition

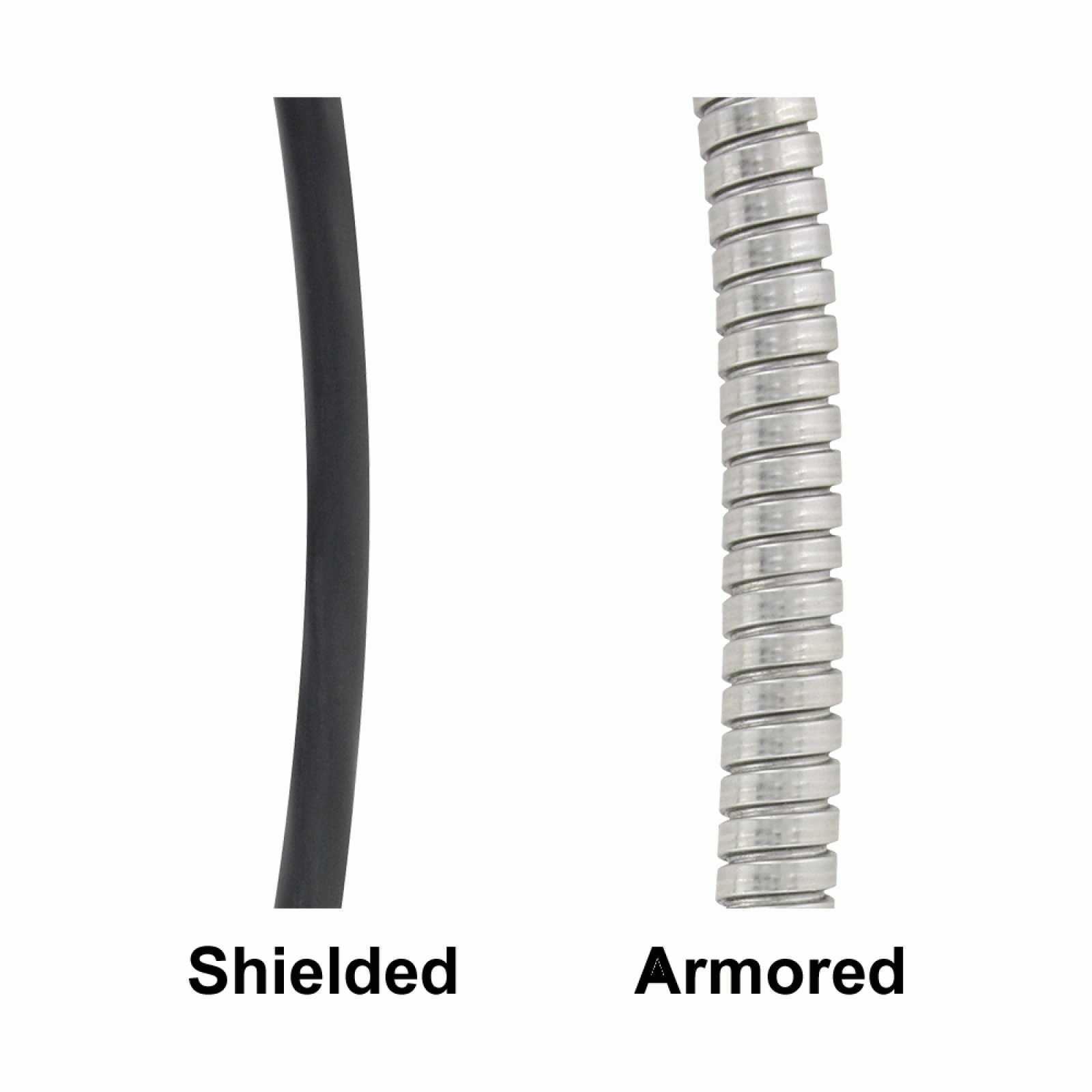

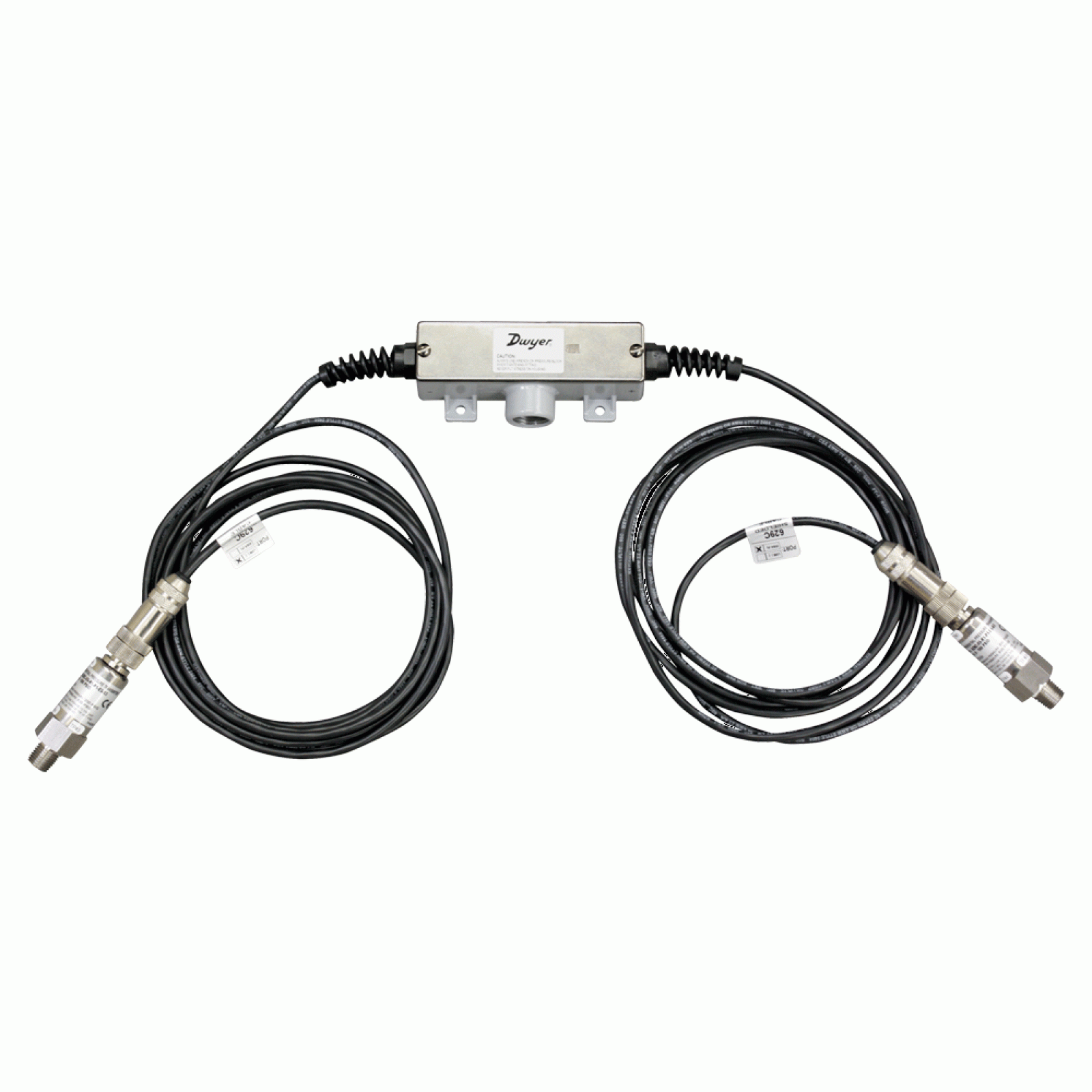

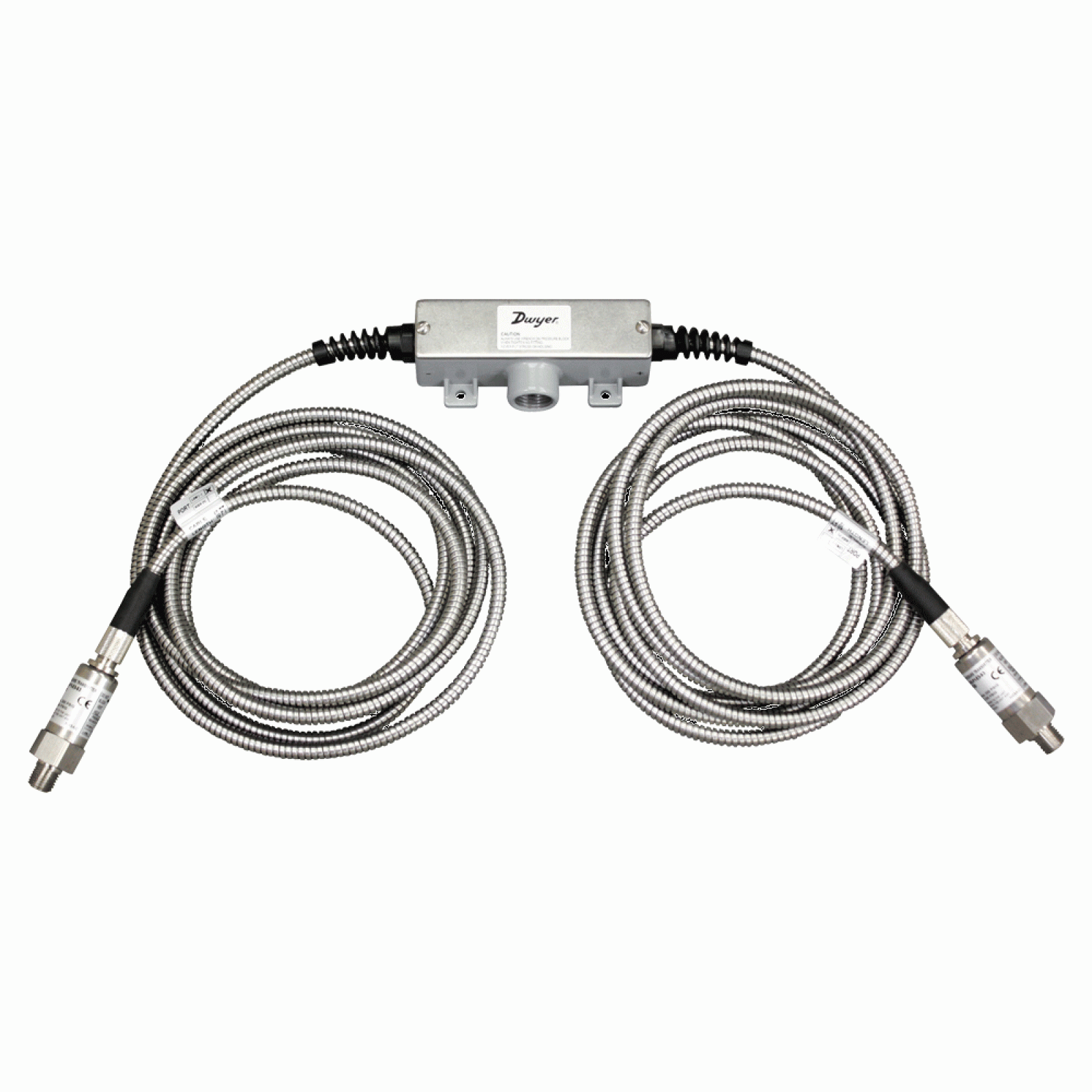

•  Remote sensor option reduces installation labor and material

APPLICATIONS

•  Flow elements

•  Heat exchangers

•  Filters

•  Coils

•  Chiller

•  Pumps
