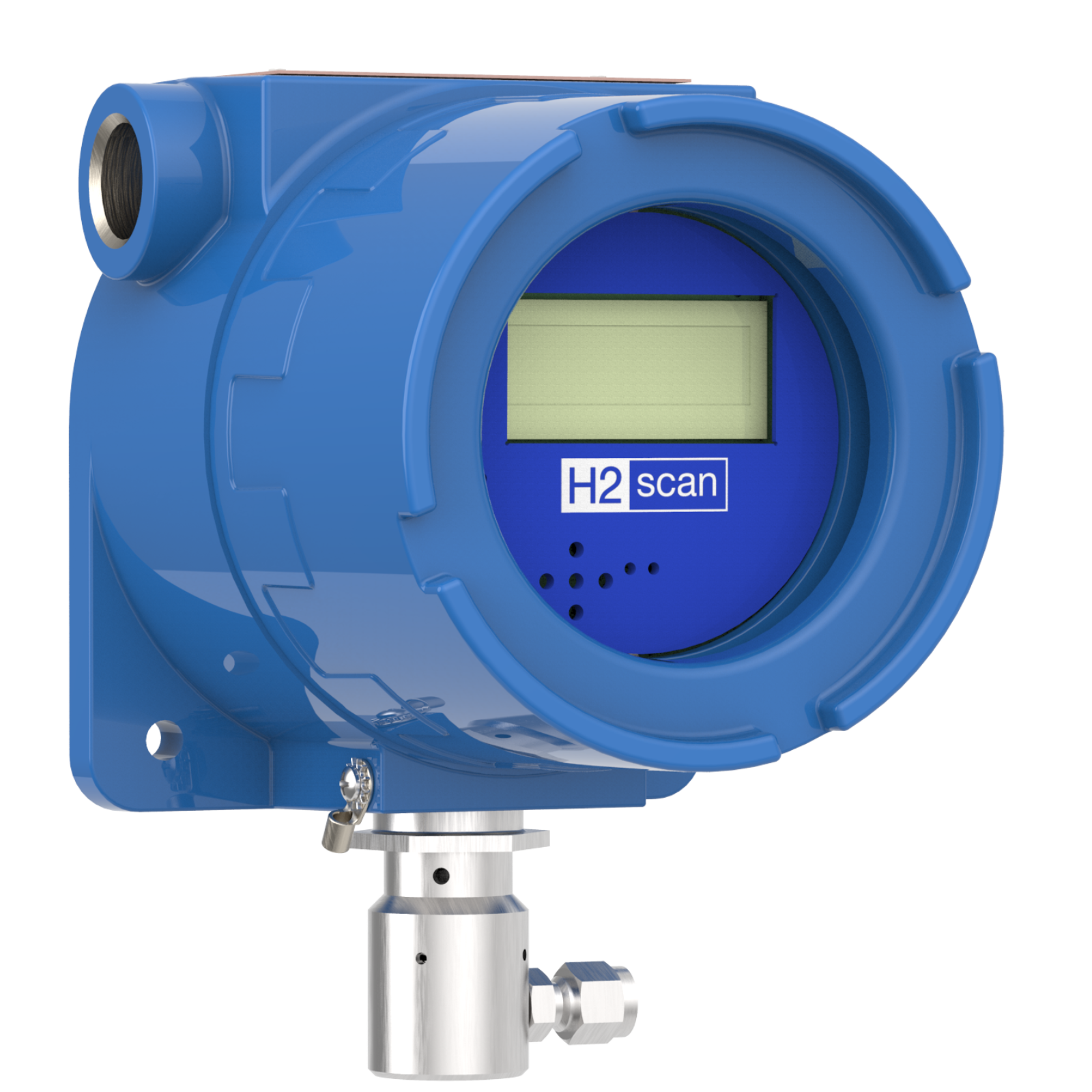

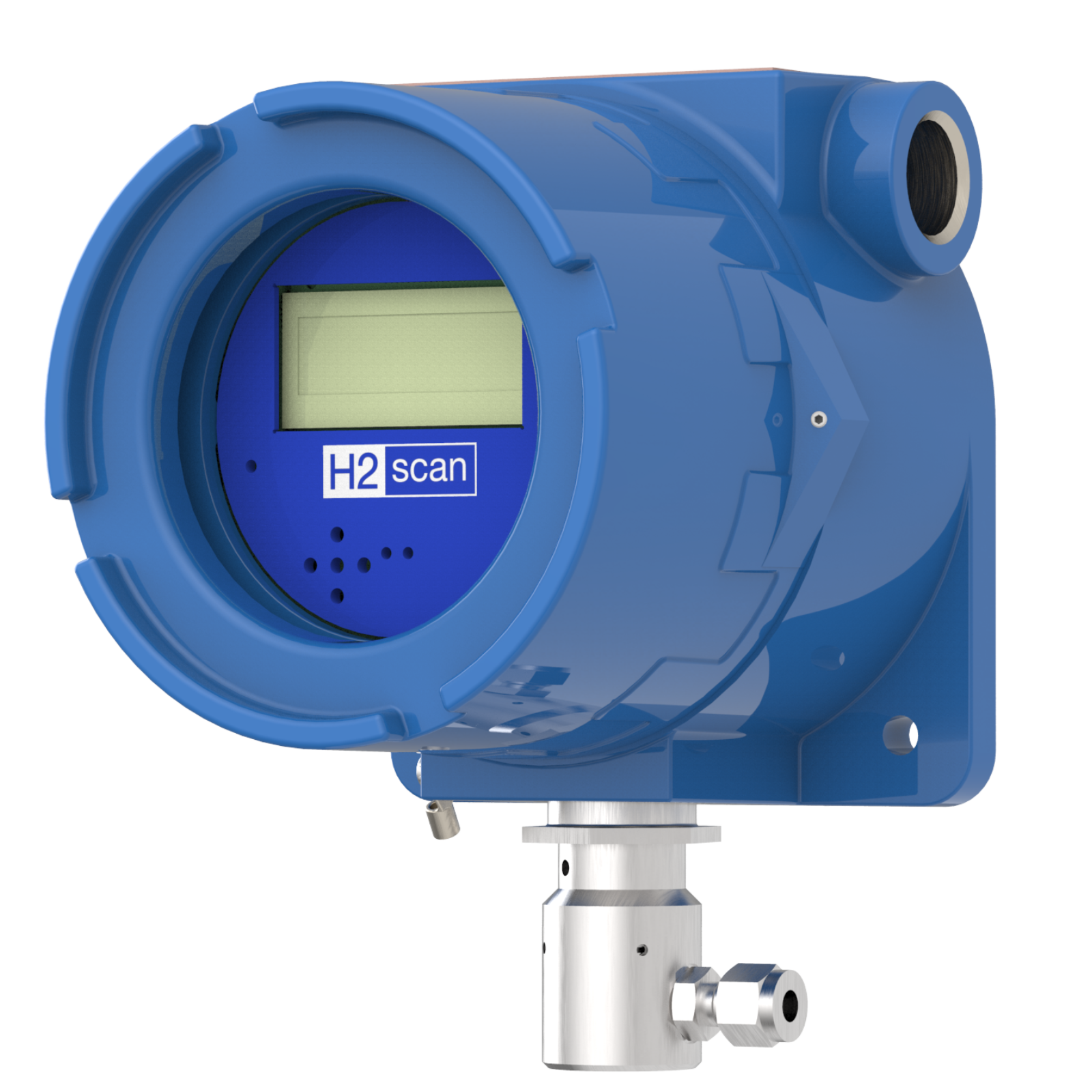

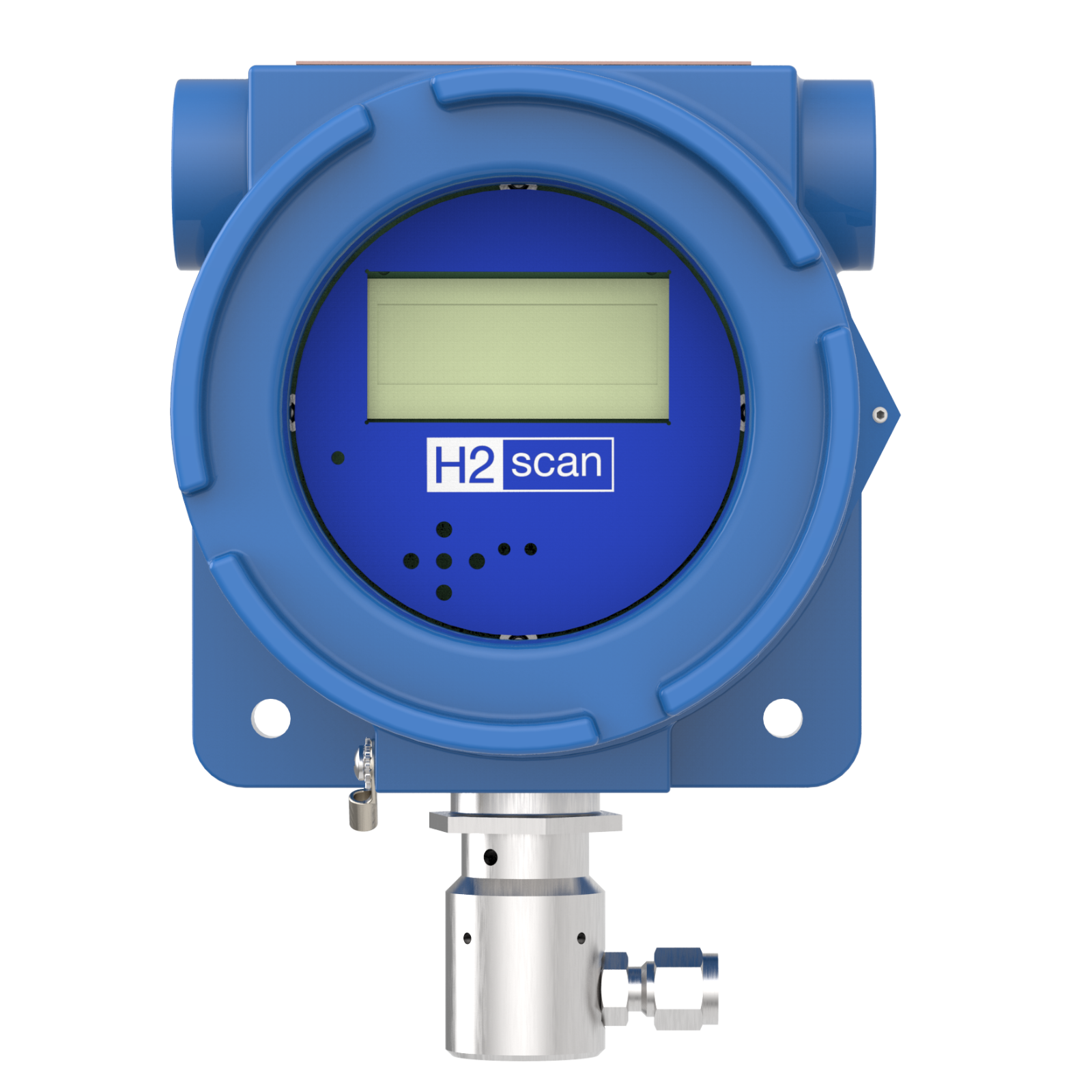

HY-ALERTA™ 2620
Explosion Proof Area Hydrogen Monitor
H2scan’s 2620 Explosion Proof Area Hydrogen Monitor provides hydrogen-specific leak detection and measurement for hydrogen concentrations as low as 4000 ppm and can be scaled to any concentration up to 5% hydrogen by volume, a range representing 10% to 125% of hydrogen’s low flammability limit. The monitor is designed for either ceiling or wall mount. H2scan’s hydrogen-specific sensor technology has no cross sensitivity to other combustible gases, thus eliminating false positive alarms and ensuring safety system reliability.
Configuration Details
Performance
- Hydrogen Sensitivity Range: 0.4% to 5.0% hydrogen by volume, 10% to 125% hydrogen lower flammable limit
- Response Time: T90 < 60 sec
- Ingress Protection: IP64 capable
- Calibration Interval: 90 days
- Product Life Expectancy: 10 years
- Accuracy: ± (3% of reading + 0.2) percent hydrogen by volume
Interface Options
- Input Voltage Range: 90 VAC to 240 VAC
- Input Power: 15W
- Analog Outputs:
- Output Currents
- – 4 mA to 20 mA
- – 0 mA to 20 mA
- – User-specific mA range
- Serial Communication Options: RS232 or RS422
- Relay Contacts: Two programmable relays and one fault relay with both normally open (N.O.) and normally closed (N.C.) contacts:
- – 5A/240VAC
- – 5A/ 30 VDC

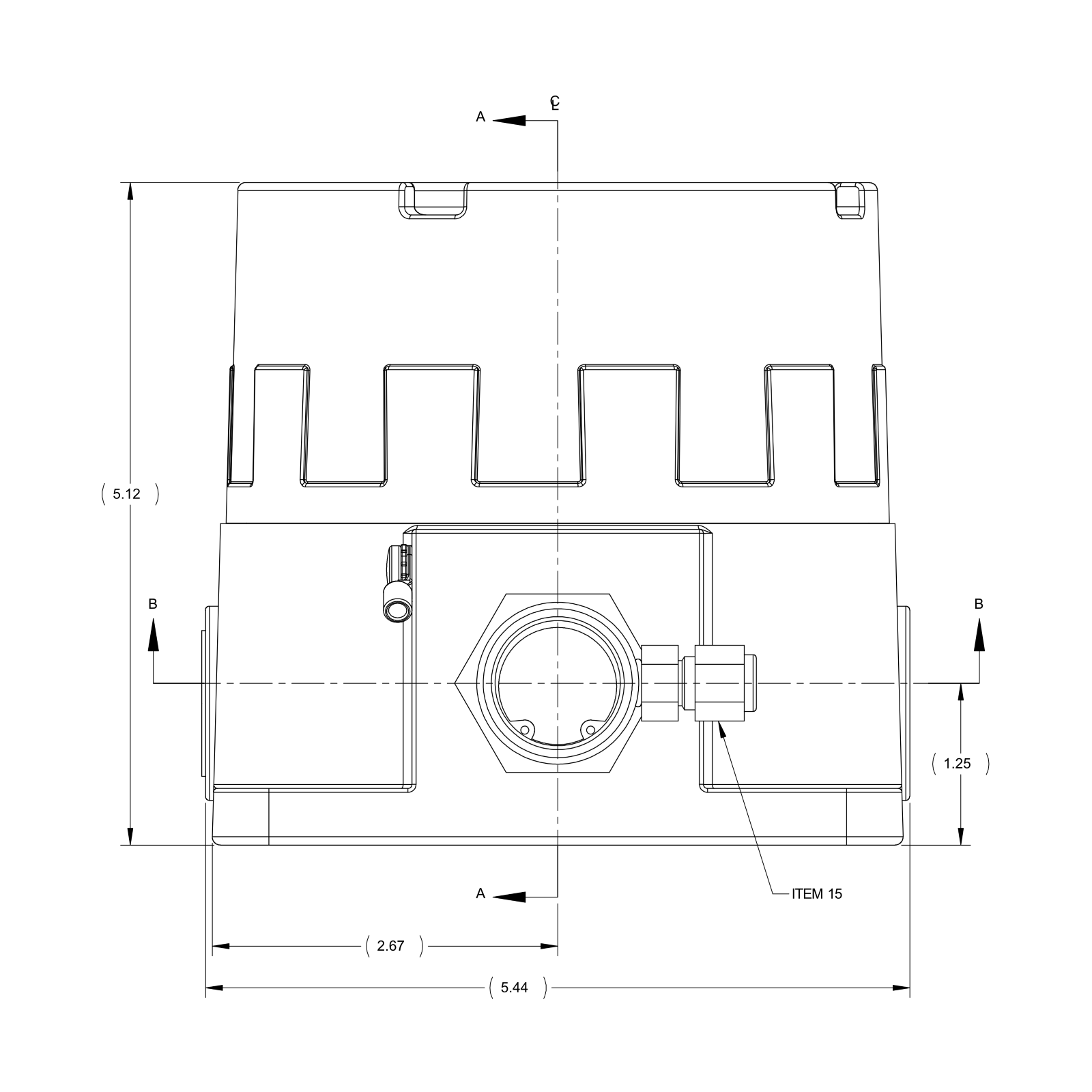

Dimensions
- Width: 13.8 cm (5.4 in)
- Length: 19.2 cm (7.5 in)
- Depth: 13.0 cm (5.7 in)
Operating Conditions
- Operating Temperature Range: -20ºC to 55ºC
- Storage Temperature Range: -30ºC to 80ºC
- Operating Humidity: 0% to 95% RH (non-condensing)
- Calibration Background Gas: Air
Adapter Fittings
- 1/4 in. Tube for Calibration Gas Connection
Certifications
2620
- UL 508, 1203
- USC – Class I, Division 1, Groups B, C, and D Hazardous (Classified)
Remote
- UL 913
- CAN/CSA C22.2 No. 157-92
HY-ALERTA™ is a registered Trademark of H2scan.
Specifications subject to change without prior notice.
